CS14 Series
Compact OEM wet/wet differential pressure transducer for industrial applications from 14″ water column DP (0.5 PSID) featuring 4-20mA or voltage outputs
**Disclaimer: Unless otherwise agreed in writing, Core Sensors products are not authorized for use in applications including medical devices, life support systems, in-flight aerospace, nuclear or any other application where the product failure could result in personal injury or death.
Wet / Wet – From 0.5 to 1,000 PSID
The CS14 series compact industrial wet/wet differential pressure transducer uses a 316L stainless steel media isolated sensor element with excellent stability over a wide operating temperature range for use with various liquids and gases. Other materials, such as gold-plating or Hastelloy C276, are available for applications such as hydrogen, various water types or liquids and gases needing higher corrosion resistance (contact factory).
Measurement pressures can be configured from 0.5 PSI (35 millibar/3.5 kpa) up to 1,000 PSI (70 bar), covering various applications including low-pressure flow and filtration measurements. Line pressures for the CS14 DP can be configured as high as 1,000 PSI (70 bar), too. Mechanically, this is a robust design with high sensitivity to measure extremely low pressures. Using a differential pressure transducer offers higher resolution and accuracy versus two independent pressure transducers.
4-20mA and voltage output signals are available. These can be transmitted through various electrical connections including cable, circular connectors, and MIL-spec rated connectors.
The CS14 Wet/Wet Differential Pressure Transducer is the ideal solution for differential pressure measurement in industrial applications such as filter condition monitoring, sealed tank level measurement, and flow measurement across an orifice. Core Sensors also manufactures custom differential pressure transducers for unique applications. For hazardous locations, view our CS54 non-incendive, CS64 explosion-proof, and CS84 intrinsically safe differential pressure transducers.
Utilizing a fully welded design without any internal O-rings or seals, this product can be used for wet/wet, wet/dry, or dry/dry applications.
Differential pressures are available as low as 0.5 PSID (14″ water column) all the way up to 1,000 PSID, in both uni-directional and bi-directional, making the CS14 an excellent solution for a wide variety of applications.
Measure differential pressure across filters for real-time monitoring
Learn more →Measure differential pressure across an orifice for flow measurement of liquids and gases
Providing critical feedback for the control of pressures and temperatures of liquids and gases in cooling data centers.
Learn more →From standard designs for test and measurement to completely customized solutions for pressure and differential pressure.
Learn more →Measure the pressure of liquids and gases in commercial HVAC and refrigeration systems with specialized packaging and configurations
Learn more →Operates from a 3–5VDC unregulated supply consuming ≤3mA. Ideal for IoT, remote monitoring, and battery-powered systems. Use Output Signal option “8” when creating a model number.
Standard lead time is typically two to three weeks with expedites available. Contact us with the pressure range and output required.
*Accuracy includes non-linearity, hysteresis and non-repeatability
**Max line pressure is the highest common mode pressure that can be applied to the sensor without damage.
***Overpressure and burst pressure are the maximum differential pressure that can be applied to the high or low side before damage to the sensor will occur.
*IP Rating is dependent on electrical termination selected. Contact factory for more information.
*IP Rating applies when electrical connector is attached with the appropriate ingress protection.
Specifications are subject to change without notice.

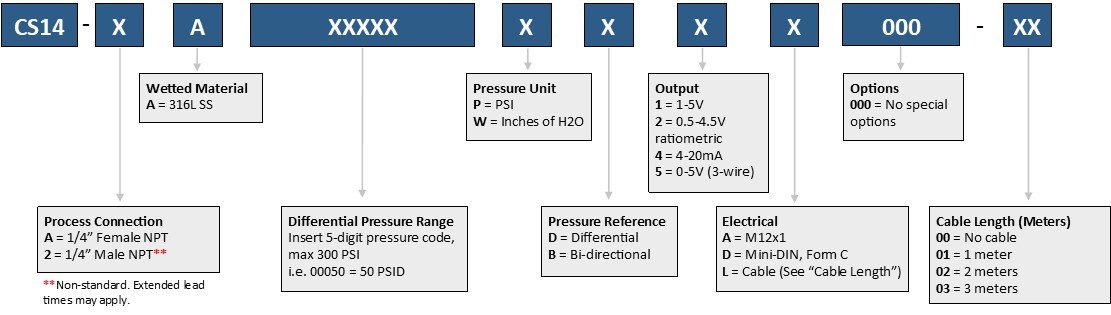

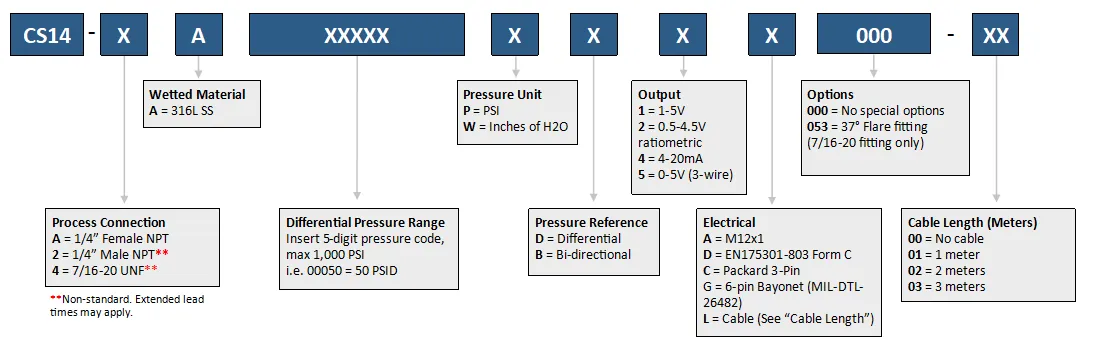

Use the configuration tool below to build your CS14 model number. Don't see the options you need? Contact us — we excel in custom configurations.
Use the filters below to explore our most popular pre-configured models. Click any configuration to view detailed specifications, download documents, and 3D STEP files. These represent our standard offerings—we also specialize in custom configurations tailored to your exact requirements. Don't see what you need? Contact us to discuss a solution designed specifically for your application.
The following accessories are recommended for use with the CS14 Differential Pressure Transducer.
Cooling Adapter / Finned Siphon
Part No. 00449-00
For applications with extreme media temperatures that exceed the rating of the pressure transducer, Core Sensors offers an all 316L SS pressure sensor cooling adapter.
View Accessory →
1/4″ SAE Female Schrader to NPT Adapter
Part No. 01534-00
The 1/4” SAE Female Schrader to NPT Adapter is a versatile adapter enabling the installation of a pressure transducer onto a process line with a male 1/4″ SAE 45° Flare Schrader valve connection without the need for a depressor pin to be previously installed in the process port of the transducer.
View Accessory →
M12x1 Overmolded Cordset
Part No. 00959-01
The M12 cordset connects the sensor to the display/data acquisition instrumentation and transmits the output signal. These cable assemblies allow for plug and play installation without the need to solder, crimp or overmold cable.
View Accessory →
6-Pin Bayonet Cordset MIL-DTL-26482 connector
The 6-Pin bayonet cordset connects the sensor to the display/data acquisition instrumentation and transmits the output signal.
View Accessory →Core Sensors offers flexible payment options for both new and established customers.
A differential pressure transducer measures the difference in pressure from P1 to P2 using two diaphragms and process connections. This provides higher accuracy than two independent pressure transducers when measuring filtration, level, or flow.
In a bi-directional differential pressure transducer, the output signal midpoint is set to 0 PSID and the measurement range is equal on either side. For example, a ±5 PSID range with 4-20mA output would set -5 PSID to 4mA, 0 PSID to 12mA, and +5 PSID to 20mA. This is common for applications with bi-directional flow or vacuum pressure measurement.
Differential pressure transducers are commonly used in: filter monitoring to detect clogging or blockages, level measurement in closed containers, flow rate measurement by calculating the pressure drop across a primary element, and safety-critical systems to monitor pressure differences that could indicate potential hazards.
Contact Core Sensors. While M12x1 and cable electrical connections are standard, the CS14 is available with other connection types including Packard, DT04, DIN, and MIL-spec connectors such as MIL-DTL-26482. Core can also customize the electrical connection and mechanical interface for OEM applications.
Yes, for OEM applications Core Sensors can customize the differential sensor platform to meet your needs, including process connections, electrical connections, materials, and outputs.
Yes, Core Sensors offers a complete line of differential pressure transducers for explosion-proof, intrinsically safe, and non-incendive areas.
Yes, Core Sensors can customize the sensor material to utilize Hastelloy C276 for corrosive liquids and gases, including various types of water where filtration or reverse osmosis would degrade standard 316L material.
The CS14 series features four M4 threaded connections on the bottom of the housing that can be used for mounting. The process connection threads should be installed per the thread specification. The standard orientation of the transducer features the mounting holes facing down, where the installer can read the label left to right.
