CSA Class I, Division 2, Groups A, B, C, D T4 Approved
Non-Incendive Pressure Transducer
CS50 Series
Features
Great For…
**Disclaimer: Unless otherwise agreed in writing, Core Sensors products are not authorized for use in applications including medical devices, life support systems, in-flight aerospace, nuclear or any other application where the product failure could result in personal injury or death.
CS50 Non-incendive Pressure Transducer Overview
The CS50 Non-Incendive Pressure Transducer is designed for use in Class I, Division 2 hazardous locations with voltage and 4-20mA output signal options. Utilizing bulk silicon technology, the CS50 is offered with 316L, Hastelloy C276, or Inconel 718 sensor materials with no welds, O-rings, or fluid cavities and an extremely, thick and robust diaphragm. The CS50 features an all welded stainless steel housing construction, offering a minimum IP65 rating. A wide range of configurable options make the CS50 a versatile pressure transducer designed to operate in some of the harshest conditions. The CS50 is an excellent solution for applications such as natural gas compression, hydrogen compression and storage, and process control instrumentation.
Caution must be taken when installing and operating the CS50 in known Class I, Division 2 hazardous locations. Please review the Non-Incendive Operating Instructions prior to installation.
Approvals/Certifications
No Conduit Installation Required!
Available With A Turck Minifast Connection

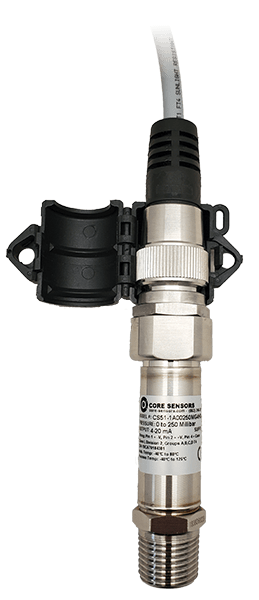

In an effort to simplify installation in Class I, Division 2 hazardous locations, the CS50 Non-Incendive Pressure Transducer is offered with an integral Turck Minifast electrical connection.
When combined with a CSA Division 2 approved Turck cordset and a Turck Lokfast Guard, there is no requirement for conduit to be installed over the cable*. This not only makes installation easy but also makes switching out sensors less cumbersome. Core Sensors can supply all components as a complete package.
* Core Sensors recommends confirming hazardous location installation requirements with your local inspector as each installation is unique.
Learn More About the Minifast Option
See product photos and installation information on our Minifast product for Class I Div 2 areas.
Purchase Your Minifast Cordset
Buy your mating cables and lockouts from us.
Specifications
Performance
Accuracy @ 25°C*
≤ ± 0.25% BFSL
≤ ± 0.5% BFSL (>10,000 PSI)
Stability (1 Year)
≤ ± 0.25% of FS
Pressure Cycles
100 million
Overpressure
2X minimum
Burst Pressure
5X or 60,000 PSI, whichever is less
* Accuracy includes non-linearity, hysteresis and non-repeatability
Thermal
Operating Temperature
-40 to +80°C
Operating Temperature
(Electrical connection “F”, EN175301-803 Form A)
-20 to +80°C
Media Temperature
-40 to +125°C
Media Temperature
(Electrical connection “F”, EN175301-803 Form A)
-40 to +105°C
Compensated Temperature
-15 to +65°C
Storage Temperature
-40 to +125°C
TC Zero
≤ ± 1% of FS
TC Span
≤ ± 1% of FS
Environmental
EMI/RFI Protection
Yes
IP Rating*
IP65 minimum
Vibration
10g, 20 to 2000Hz
Shock
100g, 11msec, 1/2 sine
* IP Rating is dependent on electrical termination selected. Contact factory for more information.
* IP Rating applies when electrical connector is attached with the appropriate ingress protection.
Electrical (Current)
Outputs
4-20mA
Excitation
10-28VDC
Current Consumption
20mA, typical
Output Load
0-800 Ohms @ 10-28VDC
Frequency Response (min)
~250Hz
Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max
Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max
Electrical (Voltage)
Outputs
1-5V
1-6V
Excitation
10-28VDC
Current Consumption
<10mA
Output Load
5K Ohms, min
Frequency Response (min)
~1kHz
Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max
Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max
Electrical (Ratiometric)
Outputs
0.5-4.5V ratiometric
Excitation
5VDC +/- 0.5V
Current Consumption
<10mA
Output Load
5K Ohms, min
Frequency Response (min)
~1kHz
Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max
Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max
Electrical (Low Power)
Outputs
0.5-2.5V non-ratiometric
Excitation
3-5VDC unregulated
Current Consumption
≤ 3mA
Output Load
5K Ohms, min
Frequency Response (min)
~1kHz
Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max
Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max
Specifications are subject to change without notice
Model Number Configuration
Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements.
Contact Core Sensors for configurations not shown.
- Ordering Example: CS50-1A00200PG4H000-00 (1/2″ Male NPT, 316L SS, 0-200 PSI gauge, 4-20mA, Turck® Minifast®)
- Gauge Pressure: 500 PSI and below standard. Sealed Gauge Pressure: Above 500 PSI, standard.
Note: Mobile users can use the zoom feature to view the model number configuration matrix clearly.

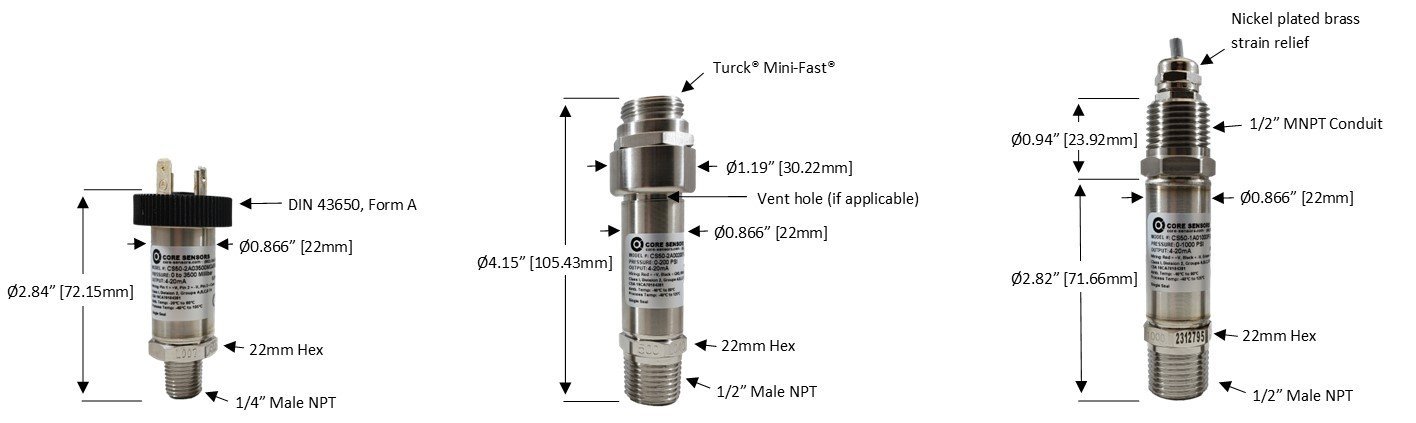

Dimensions
Note that dimensions are for reference only. Please contact us if you do not see a dimension listed.
Note: Mobile users can use the zoom feature to view the dimensions clearly.
Downloads
Datasheets
Wiring Guides
Certificates
Forms
General
Frequently Asked Questions
Can this be calibrated for vacuum pressure?
The CS50 non-incendive pressure transducer can be calibrated as a compound pressure transducer. This is very common with compressor equipment applications. For example, the CS50 can measure -14.7 PSI to 100 PSI with a 4mA output where the 4mA signal is -14.7 PSI, ~6.05mA at 0 PSI and 20mA at 100 PSI. This gives the user the ability to measure vacuum pressure.
For low pressure vacuum applications, we also offer the CS51 pressure transducer.
Is the CS50 available with CRN?
Yes, Core Sensors can offer a CRN approved CS50 pressure transducer. Contact us for a quotation.
Can the CS50 be used to measure differential pressure?
Technically, the CS50 can measure differential pressure by calculating the difference between two pressure transducers. However, the CS54 non-incendive differential pressure transducer is the more suitable solution. It will produce greater accuracy for applications such as filtration on natural gas engines.
Why would I choose the Mini-fast option?
Connectorized solutions in general provide benefits over cable including:
- Faster installation
- Minimize wiring decisions
- Independently commission the sensor and wiring
- Faster service and removal
Core Sensors stocks mating cable assemblies and lockout devices to make the CS50 ready for install.
Is the CS50 available in stock?
Core Sensors and our distributors have some stocked items available for purchase. Contact us with your configuration and we’ll confirm stock availability based on your location or turnaround time. In many cases, our team can expedite a made-to-order design within a week with various configurations.
Do you offer the CS50 with a Schrader fitting for HVAC/R applications?
While the Schrader fitting is not available as a fitting, we do offer a 1/4″ NPT to Schrader fitting. It’s available on our website for purchase and in stock.
