You are here: Home1 > Products2 > Hazardous Location3 > CS84 Intrinsically Safe Differential Pressure Transducer

CS84

Intrinsically Safe Differential Pressure Transducer

Features

  • CSA Class I, Division 1, Groups C, D T4 Approved
  • Differential pressures from 1 PSI up to 50 PSI
  • Line pressures up to 500 PSI
  • Bi-directional pressure ranges available
  • Assembled in New Jersey, USA

Great For…

  • Filtration
  • External fuel tank level measurement
Datasheet Operating Instructions CSA Certificate of Compliance

**Disclaimer: Unless otherwise agreed in writing, Core Sensors products are not authorized for use in applications including medical devices, life support systems, in-flight aerospace, nuclear or any other application where the product failure could result in personal injury or death.

About the CS84

The CS84 Intrinsically Safe Differential Pressure Transducer is a high strength sensor designed for differential pressure measurements of liquids and gases in Class I, Division 1 Intrinsically Safe locations. The CS84 features an all welded stainless steel construction for a minimum IP65 rating. A 316L SS oil filled sensor element provides excellent stability over a wide operating temperature range while offering corrosion resistance against various liquids and gases. Differential pressure ranges up to 50 PSI are available with 1/4″ MNPT or FNPT process connections. A wide range of configurable options make the CS84 a versatile pressure transducer that can be designed to operate in some the harshest conditions.

Caution must be taken when installing and operating the CS84 in known Class I, Division 1 hazardous locations. Please review the Intrinsically Safe Operating Instructions prior to installation.

Approvals/Certifications

  • CSA Class I, Division 1, Groups C, D T4
  • Class I, Zone 0 AEx ia IIB T4 Ga (Ex ia IIB T4 Ga)
  • ABS (American Bureau of Shipping) Approved
  • CE

NOTE: Must use an approved barrier to maintain listed certifications. See page 4 of datasheet for entity parameters.

Wet/Wet – Up to 50 PSID – Versatile Packaging

Versatile Differential Pressure Measurement

The CS84 Intrinsically Safe Differential Pressure Transducer is the ideal solution for differential pressure measurement in hazardous applications such as filter condition monitoring, sealed tank level measurement, and flow measurement across an orifice.

The CS84 features a fully welded design without any internal O-rings or seals, allowing for wet/wet, wet/dry, or dry/dry applications.

Differential pressures are available as low as 1 PSID up to 50 PSID in both uni-directional and bi-directional.

Multiple electrical connections and outputs are available.

Specifications

Performance

Accuracy @ 25°C*
≤ ± 0.25% BFSL
≤ ± 0.5% BFSL (2 PSI & below)

Stability (1 Year)
≤ ± 0.25% of FS

Pressure Cycles
4 million

Max Line Pressure**
500 PSI

Max Differential Pressure
50 PSI

Overpressure***
2X or 500 PSI, whichever is less, configured differential pressure

Burst Pressue***
3X configured differential pressure

* Accuracy includes non-linearity, hysteresis and non-repeatability
** Max line pressure is the highest common mode pressure that can be applied to the sensor without damage.
*** Overpressure and burst pressure are the maximum differential pressure that can be applied to the high or low side before damage to the sensor will occur.

Thermal

Operating Temperature
-40 to +80°C

Operating Temperature
(Electrical connection “F”, DIN 43650-A)
-20 to +80°C

Media Temperature
-40 to +125°C

Media Temperature
(Electrical connection “F”, DIN 43650-A)
-40 to +105°C

Compensated Temperature
0 to +55°C

Storage Temperature
-40 to +125°C

TC Zero
≤ ± 1% of FS
≤ ± 2% of FS (2 PSI & below)

TC Span
≤ ± 1% of FS
≤ ± 2% of FS (2 PSI & below)

Environmental

EMI/RFI Protection
Yes

IP Rating*
IP65 minimum

Vibration
10g, 20 to 5000Hz

Shock
100g, 11msec, 1/2 sine

* IP Rating is dependent on electrical termination selected. Contact factory for more information.
* IP Rating applies when electrical connector is attached with the appropriate ingress protection.

Electrical (Current)

Outputs
4-20mA

Excitation
10-28VDC

Current Consumption
20mA, typical

Output Load
0-800 Ohms @ 10-28VDC

Frequency Response (min)
~250Hz

Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max

Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max

Electrical (Voltage)

Outputs
1-5V

Excitation
10-28VDC

Current Consumption
<10mA

Output Load
5K Ohms, min

Frequency Response (min)
~1kHz

Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max

Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max

Electrical (Ratiometric)

Outputs
0.5-4.5V ratiometric

Excitation
5VDC +/- 0.5V

Current Consumption
<10mA

Output Load
5K Ohms, min

Frequency Response (min)
~1kHz

Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max

Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max

Electrical (Low Power)

Outputs
0.5-2.5V non-ratiometric

Excitation
3-5VDC unregulated

Current Consumption
≤ 3mA

Output Load
5K Ohms, min

Frequency Response (min)
~1kHz

Zero Offset (of FS)
≤ ± 0.5% typical, ± 1% max

Span Tolerance (of FS)
≤ ± 0.5% typical, ± 1% max

Specifications are subject to change without notice

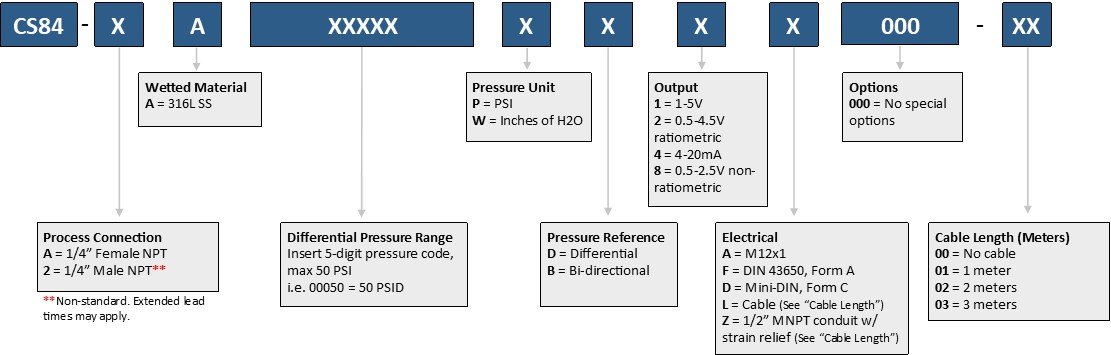

Model Number Configuration

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements.
Contact Core Sensors for configurations not shown.

– Ordering Example: CS84-AA00010PD4A000-00 (1/4″ Female NPT, 316L SS, 0-10 PSI differential, 4-20mA, M12x1)

Note: Mobile users can use the zoom feature to view the model number configuration matrix clearly.

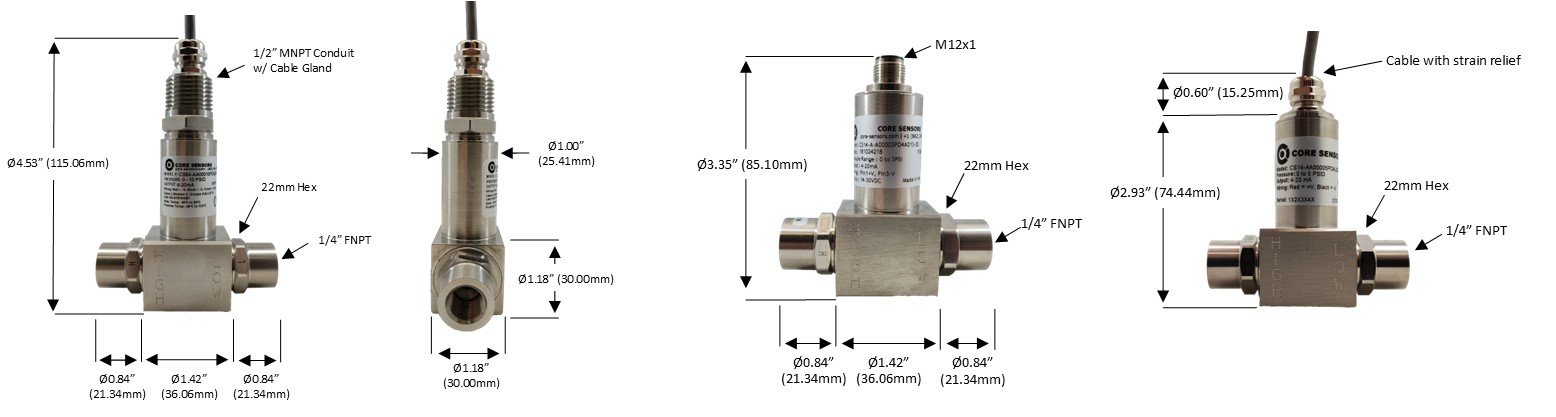

Dimensions

Note that dimensions are for reference only. Please contact us if you do not see a dimension listed.

Note: Mobile users can use the zoom feature to view the dimensions clearly.
