You are here: Home1 > Products2 > Industrial OEM Pressure Transducers3 > CS-SM Steel Mill Pressure Transducer

CS-SM

Steel Mill Pressure Transducer

Features

  • ≤ ±0.25% BFSL accuracy
  • Pressures up to 350 Bar
  • 4X overpressure protection
  • IP69 protection against high pressure washdown

Great For…

  • Stamping
  • Roll forming
  • Rolling mill
  • Pumps
Datasheet

**Disclaimer: Unless otherwise agreed in writing, Core Sensors products are not authorized for use in applications including medical devices, life support systems, in-flight aerospace, nuclear or any other application where the product failure could result in personal injury or death.

About the CS-SM

The CS-SM Steel Mill Pressure Transducer is designed to withstand the rugged demands of the steel mill industry. Standard configuration includes a stainless steel body welded to a high strength stainless steel sensing element offering 4X overpressure protection, integral snubber to protect against pressure transients and an IP69 rating. Electrical connections include integral cable or a 6-Pin Bayonet (MIL-DTL-26482) connector with a variety of output signals and process connections.

Built for the toughest environments

High Strength Pressure Transducer

  1. Snubber: A integral snubber (or restrictor plug) is standard on the CS-SM, dampening the pressure spikes that are common in steel and rolling mill applications. Even with the addition of the snubber, the CS-SM is still capable of responding to pressure quickly; ~1kHz for voltage outputs and ~250Hz for 4-20mA current output.
  2. Overpressure Protection: By carefully selecting the appropriate diaphragm thickness, the CS-SM is capable of achieving 4X overpressure protection and 10X (or 20,000 PSI) burst pressure protection. These protections are critical in applications such as stamping and roll forming as the sudden pressure events can easily exceed the intended application pressure. Transducers without high overpressure and burst pressure protection run the risk of permanent damage and potential damage to other equipment if the pressure cannot be monitored and controlled properly.
  3. IP69 Rating: A 6-Pin Bayonet (MIL-DTL-26482) electrical connector is precision tig welded onto the sensors body, providing an IP69 rating. This ensures the sensor will continue operating, even during high pressure washdown events.

Specifications

Performance

Accuracy @ 25°C*
≤ ± 0.25% BFSL

Stability (1 Year)
≤ ± 0.25% of FS

Pressure Cycles
>100 million

Overpressure
4X minimum

Burst Pressure
10X or 20,000 PSI, whichever is less

* Accuracy includes non-linearity, hysteresis and non-repeatability

Thermal

Operating Temperature
-40 to +100°C

Compensated Temperature
+20 to +90°C

Storage Temperature
-40 to +125°C

TC Zero
≤ ± 1% of FS

TC Span
≤ ± 1% of FS

Environmental

EMI/RFI Protection
Yes

IP Rating*
IP69

Vibration
10g, 20 to 2400Hz

Shock
100g, 11msec, 1/2 sine

* IP Rating is dependent on electrical termination selected. Contact factory for more information.
* IP Rating applies when electrical connector is attached with the appropriate ingress protection.

Electrical (Current)

Outputs
4-20mA

Excitation
10-28VDC

Current Consumption
20mA, typical

Output Load
0-800 Ohms @ 10-28VDC

Frequency Response (min)
~250Hz

Zero Offset (of FS)
± 1% max

Span Tolerance (of FS)
± 1.5% max

Electrical (Voltage)

Outputs
1-5V
1-6V

Excitation
10-28VDC

Current Consumption
<10mA

Output Load
5K Ohms, min

Frequency Response (min)
~1kHz

Zero Offset (of FS)
± 1% max

Span Tolerance (of FS)
± 1.5% max

Specifications are subject to change without notice

Model Number Configuration

Not all configurations are available. Our sales team can recommend the closest available configuration based on your requirements.
Contact Core Sensors for configurations not shown.

– Ordering Example: CSSM-2B01000PS4G000-00 (1/4″ Male NPT, 17-4PH, 0-1000 PSI sealed gauge, 4-20mA, 6-Pin Bayonet (MIL-DTL-26482))

Note: Mobile users can use the zoom feature to view the model number configuration matrix clearly.

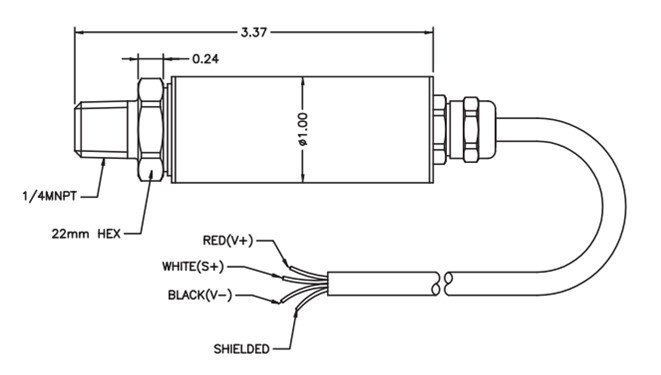

Dimensions

Note that dimensions are for reference only. Please contact us if you do not see a dimension listed.

Note: Mobile users can use the zoom feature to view the dimensions clearly.
