CS10 Series
CS10 Industrial OEM Pressure Transducer
CS10 series industrial pressure transducers are designed for maximum configuration flexibility with 4-20mA or voltage output signals. Choose from a variety of process connections, electrical connections, output signals and configurable pressure range calibrations. Great for water pressure monitoring, hydraulic/pneumatic equipment, HVAC/R controls, and Hydrogen (316L SS only). Lead time for standard configurations are typically two weeks with expedites available. Reach out with your requirements and we’ll confirm.
- Pressures from vacuum up to 40,000 PSICalibrated to the exact pressure range you want and available in two weeks.
- Highly configurable designCustomize beyond the datasheet
- 4-20mA, amplified voltage, and millivolt outputs availableIntegral cable or choose from 1 of 7 standard connectors
- Stainless Steel or Nickel-alloy sensor materials17-4, 316L, Hastelloy C276, and Inconel 718 available
- Industrial pressure transducer with fully welded housing
- Reverse polarity and EMI protection
**Disclaimer: Unless otherwise agreed in writing, Core Sensors products are not authorized for use in applications including medical devices, life support systems, in-flight aerospace, nuclear or any other application where the product failure could result in personal injury or death.
OverviewSpecificationsDimensions / 3D Models / MaterialsModel Number ConfiguratorHow To BuyFAQsDownloads
4-20mA or Voltage Output Pressure Transducers
Accurate, Reliable, and Repeatable Measurement
The CS10 uses MEMS silicon strain gages mounted to a stainless steel or nickel alloy sensing element. Our ASIC electronics offer analog voltage or 4-20mA loop powered output signals. Various process connections are available in 17-4PH, 316L or nickel alloys including Hastelloy C276 and Inconel 718. Electrical connections include cable or various integral connectors. Semi-custom and custom designs are available.
CS10 pressure transducers offer some of the most competitive lead times in the industry for made-to-order sensors. We partner with customers to deliver transducers and transmitters in various quantities with the right combination of options when the customer needs it. It can be packaged as an OEM pressure transducer with quantity discounts starting at 10 pieces.
The CS10 industrial pressure transducer offers design flexibility to be incorporated into most industrial OEM equipment applications such as HVAC systems, hydraulic systems, commercial water pumps, and more. It can be designed as a drop-in replacement transducer for a single piece or directly into OEM designs for full production. It combines design flexibility and customization with industry-leading availability of made-to-order configurations.
Configurable, Economical and Rugged
The CS10 Industrial Pressure Transducer is the ideal solution for demanding applications where ruggedness and reliability are top priority. Choose from various threaded connections, pressure ranges from vacuum up to 45,000 PSI, various electrical connections including integral cable or connectors, wetted materials to ensure adequate compatibility, and various output signals.
Add special design features including:
- Sealed gage reference for greater ingress protection
- Internal snubber for hydraulic pressure spikes
- Custom calibration range to get the exact measurement you need
Pressure Transducer Accessories
Readily available
We also stock a number of pressure sensor accessories to make your purchase even easier. Commonly purchased accessories include:
CS10 Applications
Featured
Water
Measure water pressure in commercial pumps, hydraulic frac pumps, desalination equipment and more
Learn more →HVAC & Refrigeration
Measure the pressure of liquids and gases in commercial HVAC and refrigeration systems with specialized packaging and configurations
Learn more →Hydraulic Pressure
Measure hydraulic pressure with increased proof pressure and pressure spike protection.
Learn more →Hydrogen
Choose pressure transducers compatible with hydrogen, avoiding embrittlement and leaks.
Learn more →Military & Defense
From standard designs for test and measurement to completely customized solutions for pressure and differential pressure.
Learn more →Approvals & Certifications
CE
- EMC Directive 2014/30/EU
ABS
- Product Design Assessment (PDA)
RoHS
- Directive 2011/65/EU
- Amendment 2015/863/EU
Tailored to Your Requirements
With our broadest selection of configurable options, the CS10 Series can be tailored to meet a wide range of application requirements. Select from a comprehensive list of process connections, electrical connections, output signals, wetted materials, and calibrated pressure ranges.
Special Options
Integral pressure snubbers, cooling adapters, and higher IP-ratings available to keep your transducer operating long-term. Calibration sheets available to order.
Competitive Lead Times
Standard lead time is typically two weeks with expedites available. Contact us today with your requirements.
Performance
Accuracy @ 25°C* ≤ ± 0.25% BFSL
≤ ± 0.5% BFSL (≤ 2 PSI & >10,000 PSI)
≤ ± 1% BFSL (Millivolt)
≤ ± 0.5% BFSL (≤ 2 PSI & >10,000 PSI)
≤ ± 1% BFSL (Millivolt)
Stability (1 Year) ≤ ± 0.25% FS
Pressure Cycles 100 Million
Overpressure 2X Minimum
Burst Pressure 5X or 60,000 PSI, whichever is less
*Accuracy includes non-linearity, hysteresis and non-repeatability
Thermal
Operating Temperature -40°C to +85°C
Media Temperature -40 to +120°C
Compensated Temperature -15°C to +65°C
Storage Temperature -40 to +125°C
TC Zero ≤ ±1% FS
≤ ±2% FS (≤ 2 PSI)
≤ ±2% FS (≤ 2 PSI)
TC Span ≤ ±1% FS
≤ ±2% FS (≤ 2 PSI)
≤ ±2% FS (≤ 2 PSI)
Environmental
EMI/RFI Protection Yes
IP Rating* IP65 minimum
Vibration 10g, 20-2000Hz
Shock 100g, 11ms, 1/2 sine
*IP Rating is dependent on electrical termination selected. Contact factory for more information.
*IP Rating applies when electrical connector is attached with the appropriate ingress protection
Electrical
Viewing: 4-20mA Click a tab above to switch output type
Excitation 10-28VDC
Current Consumption 20mA, typical
Output Load 0-800Ω @ 10-28VDC
Frequency Response (min) ~250HZ, min
Zero Offset (of FS) ≤ ±0.5% typical (± 0.08 mA)
±1% max (± 0.16 mA)
±1% max (± 0.16 mA)
Span Tolerance (of FS) ≤ ±0.5% typical (± 0.08 mA)
±1% max (± 0.16 mA)
±1% max (± 0.16 mA)
Viewing: 1-5V, 0-5V (3-wire), 1-6V Click a tab above to switch output type
Excitation 10-28VDC
Current Consumption <10mA
Output Load 5kΩ, min
Frequency Response (min) ~1kHz, min
Zero Offset (of FS) ≤ ±0.5% typical
±1% max
±1% max
Span Tolerance (of FS) ≤ ±0.5% typical
±1% max
±1% max
Viewing: 0-10V (3-wire) Click a tab above to switch output type
Excitation 15-28VDC
Current Consumption <10mA
Output Load 5kΩ, min
Frequency Response (min) ~1kHz, min
Zero Offset (of FS) ≤ ±0.5% typical (± 0.05 V)
±1% max (± 0.1 V)
±1% max (± 0.1 V)
Span Tolerance (of FS) ≤ ±0.5% typical (± 0.05 V)
±1% max (± 0.1 V)
±1% max (± 0.1 V)
Viewing: 0.5-4.5V Ratiometric Click a tab above to switch output type
Excitation 5VDC ±0.5V
Current Consumption <10mA
Output Load 5kΩ, min
Frequency Response (min) ~1kHz, min
Zero Offset (of FS) ≤ ±0.5% typical (± 0.02 V)
±1% max (± 0.04 V)
±1% max (± 0.04 V)
Span Tolerance (of FS) ≤ ±0.5% typical (± 0.02 V)
±1% max (± 0.04 V)
±1% max (± 0.04 V)
Viewing: 0.5-2.5V Non-Ratiometric Click a tab above to switch output type
Excitation 3-5VDC unregulated
Current Consumption ≤3mA
Output Load 5kΩ, min
Frequency Response (min) ~1kHz, min
Zero Offset (of FS) ≤ ±0.5% typical (± 0.01 V)
±1% max (± 0.02 V)
±1% max (± 0.02 V)
Span Tolerance (of FS) ≤ ±0.5% typical (± 0.01 V)
±1% max (± 0.02 V)
±1% max (± 0.02 V)
Viewing: 10mV/V Click a tab above to switch output type
Excitation 5VDC, typical
Current Consumption <5mA
Output Load >1MΩ
Frequency Response (min) ~5kHz
Zero Offset (of FS) ≤ ±2% (± 0.2 mV/V)
Span Tolerance ≤ ±2% (± 0.2 mV/V)
Specifications are subject to change without notice.

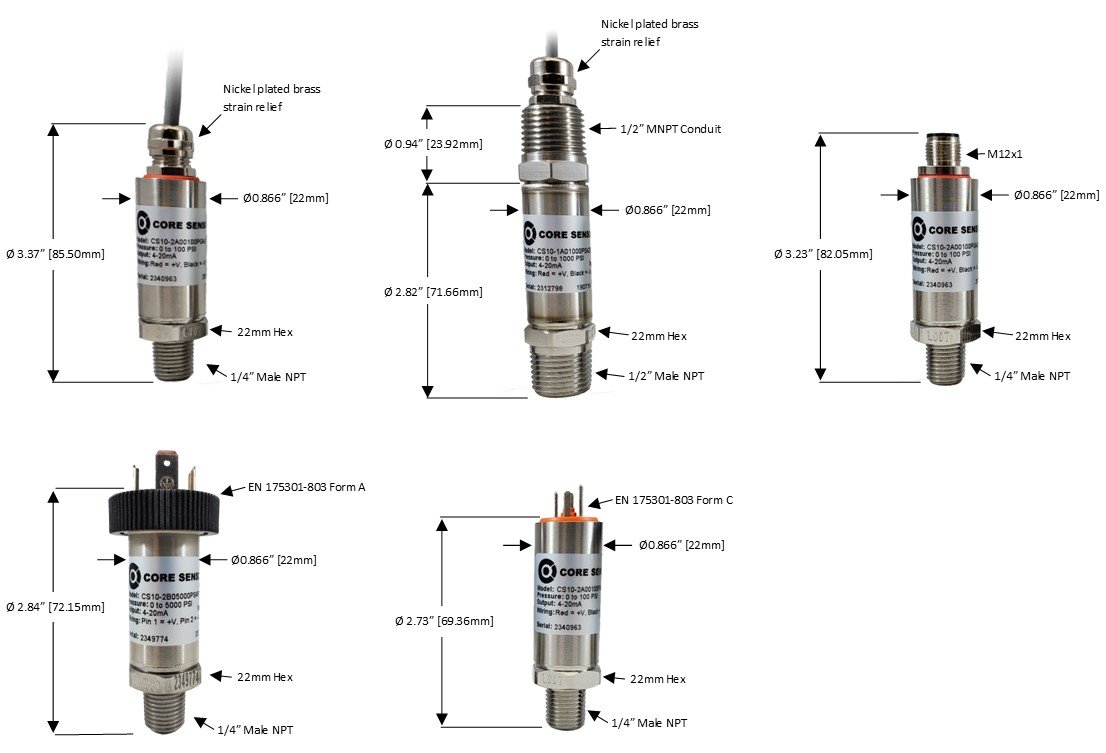

Select an available configuration below to generate a 3D model, download the STEP file, and access dimension drawings. Don’t see the configuration you need? Contact us — we are ready to help.
Loading 3D models…

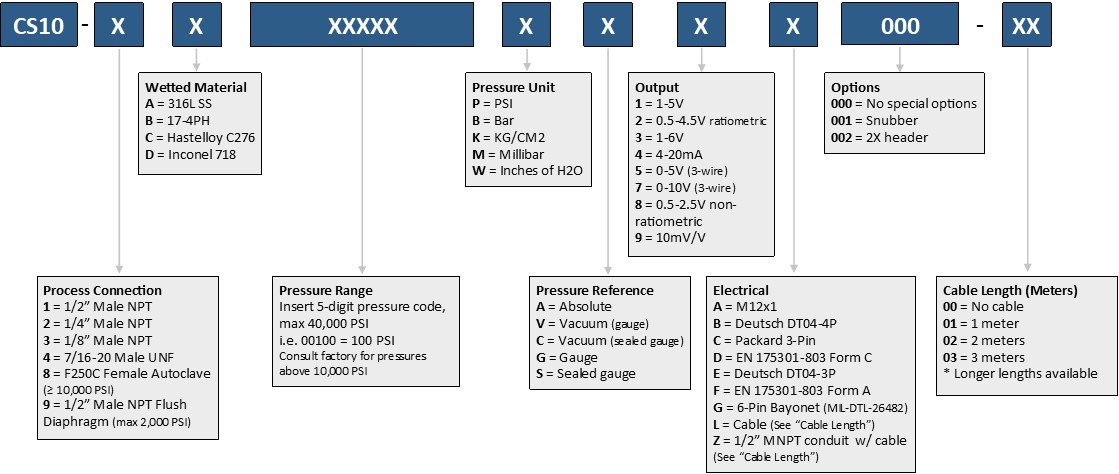

Use the configuration tool below to build your CS10 model number. Don't see the options you need? Contact us — we excel in custom configurations.
Classic Model Number Configuration Guide Looking for our classic model number guide? Click to expand the full reference guide image.
▼
Use the filters below to explore our most popular pre-configured models. Click any configuration to view detailed specifications, download documents, and 3D STEP files. These represent our standard offerings—we also specialize in custom configurations tailored to your exact requirements. Don't see what you need? Contact us to discuss a solution designed specifically for your application.
CS10
CS10
CS10
CS10
CS10
CS10
CS10
CS10
The following accessories are recommended for use with the CS10 Industrial Pressure Transducer.
1/4″ SAE Female Schrader to NPT Adapter
Part No. 01534-00
The 1/4” SAE Female Schrader to NPT Adapter is a versatile adapter enabling the installation of a pressure transducer onto a process line with a male 1/4″ SAE 45° Flare Schrader valve connection without the need for a depressor pin to be previously installed in the process port of the transducer.
View Accessory →
Cooling Adapter / Finned Siphon
Part No. 00449-00
For applications with extreme media temperatures that exceed the rating of the pressure transducer, Core Sensors offers an all 316L SS pressure sensor cooling adapter.
View Accessory →
M12x1 Overmolded Cordset
Part No. 00959-01
The M12 cordset connects the sensor to the display/data acquisition instrumentation and transmits the output signal. These cable assemblies allow for plug and play installation without the need to solder, crimp or overmold cable.
View Accessory →
6-Pin Bayonet Cordset MIL-DTL-26482 connector
The 6-Pin bayonet cordset connects the sensor to the display/data acquisition instrumentation and transmits the output signal.
View Accessory →How To Buy
Core Sensors offers flexible payment options for both new and established customers.
Credit Card
Purchasing on a credit card is the quickest way to complete your order.
- Enter the items and prices from your quote.
- We review your request and confirm pricing.
- Pay via a secure payment link that we email you.
- For billing and shipping addresses in the United States and Canada. International customers, please contact us.
- All major credit cards accepted.
- No credit card processing fees.
- Tax exempt? Include your sales tax exempt form. Otherwise, sales tax is charged where applicable.
Please do not send credit card information by email. Core Sensors does not collect or store card details. Payments are processed by Stripe, a PCI-DSS Level 1 compliant processor.
Net 30 Payment Terms
Core Sensors offers Net 30 day payment terms to qualified customers.
- Download and complete the credit application.
- Email it with your W-9 to [email protected].
- Our accounting team will review.
- Your company’s own banking and trade reference form is also accepted.
- Include your sales tax exempt form, if applicable.
How long does approval take? It depends on how quickly your listed trade references respond to our credit inquiries. Please ensure your trade references are up to date at the time of submission to prevent delays.
While the terms tend to be interchangeable, a pressure transducer refers to a pressure sensing device with an amplified voltage output signal whereas a transmitter would have a 4-20mA output signal.
Two-wire pressure transducers are typically associated with 4-20mA pressure sensors. This is a loop-powered device requiring a power and ground wire. Click our 4-20mA wiring page to learn more. Three wire pressure transducers are voltage output sensors. The wires are power, signal and ground. The main difference between the two and three wire design is that the three-wire has an independent wire/conductor for the signal output. Voltage output signals are more common for low power sensing applications and shorter distance transmissions (<20 feet).
Pressure snubbers are designed to protect the pressure transducer diaphragm from a hydraulic event known as a pressure spike. These spikes can occur with the opening or closing of a valve or a system overload condition. Temperature spikes are also common in refrigeration applications. By reducing the inside diameter hole with the pressure snubber, the spike is dampened thus protecting the diaphragm measuring the pressure. Core Sensors offers integral pressure snubbers for its CS10 pressure transducers. This maintains the same overall length while protecting the sensor from catastrophic events. Contact our team to discuss your application.
Resources
As you look at the ordering matrix, there are a number of options to choose from. Core Sensors manufactures a variety of configurations to increase your design flexibility both mechanically and electrically. Various factors such as the pressure, liquid or gas being measured, power supply, and most importantly, application, will dictate which options are most suitable for you. Contact our office or send us an email with your design considerations and we’ll walk through the application and options.
Resources
A ratiometric output signal starts with a regulated supply voltage (typically 5VDC). The output signal (typically 0.5-4.5V) experiences proportional changes to the output signal based on a change to the supply voltage. A drop in 1% in supply voltage will lower the signal by an equal percentage. Ratiometric outputs are most common in automotive and HVAC/R industries due to their lower cost to build.
CS10 industrial pressure transducers are available in 2-3 weeks ARO for most configurations. From there, we work with customers to create a release schedule that meets their needs. This can include partial shipments. Expedites are available in many situations. Reach out to the sales team to help configure a pressure transducer.
While the CS10 offers a high level of configuration, customization is still possible. This can include mechanical, material, and electrical customizations to the pressure transducer. Additionally, the calibration can be customized for specific offsets or pressure types to accommodate existing designs or new setups.
Resources
Yes, we offer a variety of STEP files with combinations of various mechanical and electrical interfaces. Contact us for specific requests or use the Model Configurator tab to configure your own.
Yes, we can configure the CS10 pressure sensor with a compound gauge or sealed gauge pressure range to measure various refrigerants. We also stock a 1/4″ NPT to Schrader adapter for simple integration into your refrigeration system.
Resources
Pressure sensors can be manufactured using various materials, creating increased design flexibility when measuring liquids and gases. Examples include hydrogen and seawater, which can create challenges for traditional 17-4 PH stainless steel.
Resources
An OEM pressure transducer refers to a pressure sensor, transducer, or transmitter designed for Original Equipment Manufacturers (OEM). These are typically applications that specified onto a piece of equipment such as a hydraulic system or HVAC commercial refrigeration system that integrate the pressure transducer into the bill of materials (BOM). Core Sensors manufactures standard and custom OEM pressure transducers to be backwards compatible with existing designs or new configurations to meet application demands. Quantity discounts start at 10 pieces.
